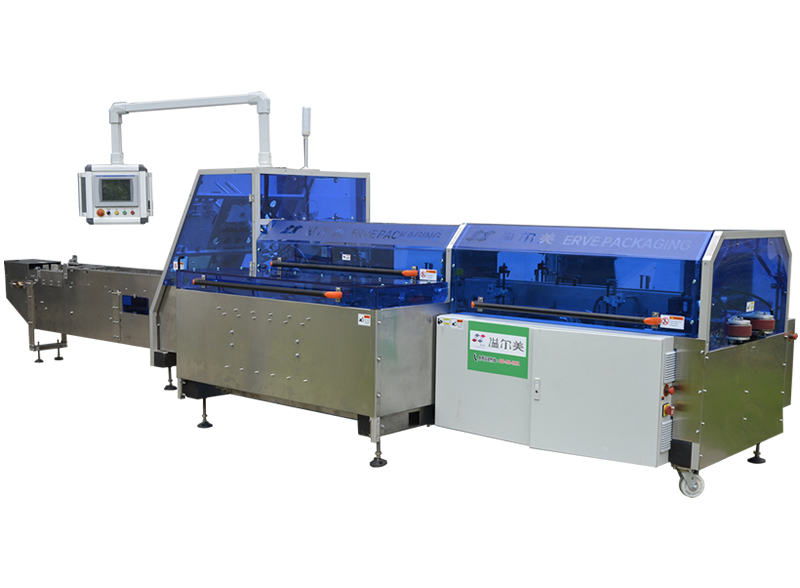

Auto End Load Cartoner
These popular cartoner has the flexibility, reliability and functionality that today’s packager’s need. Capable of erecting, loading and sealing a wide range of carton sizes and styles at speed up to 120 cartons per minute. Along with its continuous motion design, the RFC120 includes a fully automatic barrel cam product inserter with adjustable overload sensor protected retract system. Smooth, efficient and reliable operation with minimal downtime and maintenance requirement, are just a few of the key attributes that have made the RFC125 such a popular choice
Feature & Benefits
- Continuous motion servo-driven horizontal cartoner, speed up to 120 cartons per minutes with Large carton size range
- Revolutionary two-head rotary feeder with per-break for optimal carton forming ensures smooth, efficient operation, eliminates carton setup failure
- A servo-driven design means fewer moving parts providing greater accuracy at high speeds, robust design increases components life providing for ease of maintenance and operation cost
- Powered carton magazine is ergonomically correct and load easily.
- Cartons carried on lug chain to maximize carton surface protection
- Tool-less adjustment and scales maximize productivity for fast, accurate and easy pre-sized carton magazine for quick changovers）
- No products/no carton, no carton/no load sensing
- Open flap detection with air rejects
- Powered outfeed belts
- Siemens or AB Rockwell PLC motion control system，Swivel arm-mounted operator panel
- Fully-interlocked barrier guard package
- Stainless steel construction，Hygienic design(reduced flat surfaces, hollow bodies, easy cleaning, etc.)make it extremely suitable for food environment
- Supplied on castors for maneuverability
Utilities
- Power Supply: 380/460VAC,3 Phase,50/60Hz;4HP for tuck closure,8HP with hot -melt glue
- Air consumption: 5-6Bar /80psi, 0.6m3/min. in Typical
- App.2400KG
Optional features
- Hot melt gluing and Tuck-in flap enclosure are available
- variety of infeed systems (robotic, bomb-bay, smart belt, etc)
- Remote Diagnostic units
- Integration of leaflet feeder, emboss coding, laser coding, inkjet coding
- Many options available upon request
Carton size & range
|
|
Not all minimums and maximums apply. Special modification are available to extend the size range;
Actual speed depends upon machine configuration and carton size and style, ask our engineer about meeting higher speed requirements
